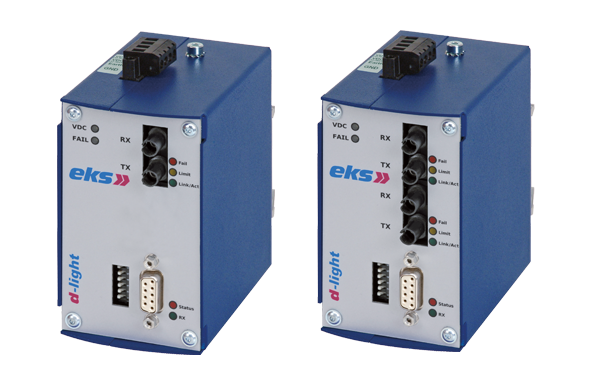

DL-485-IB2 systems transmit serial IB2-bus signals with data rates up to 3 MBit/s via optical fibers.
They replace/extend equivalent RS485 two-tire connections.
Two power inputs allow a redundant voltage supply.
Possible failures are displayed by an integrated relay and a fault LED.
DL-485-IB2-2X forward RS-485 signals to two optical ports.
Feel free to ask us, we are here to help you with any question you may have.
Phone: +49 2762 9313-600
Contact us!| Typ | P-ST | MM-ST | MM-SC | MM-SC/BIDI | SM-ST | SM-SC | SM-SC/BIDI | ||
|---|---|---|---|---|---|---|---|---|---|
| Article no. DL485-IB2 |
01210 6101 |
01210 6121 |
01210 6123 |
01210 6123-BIDI A 6123-BIDI B |
01210 6131 |
01210 6133 |
01210 6133-BIDI A 6133-BIDI B |
||
| Article no. DL485-IB2-2x |
01210 6151 |
01210 6171 |
01210 6173 |
01210 6173-BIDI |
01210 6181 |
01210 6183 |
01210 6183-BIDI |
||
| Transmission rate | 1.200 Bit/s to 3 Mbit/s | ||||||||
| Transmission mode | Half duplex | ||||||||
| Fiber-connector | ST | ST | SC | SC | ST | SC | SC | ||
| Fiber | POF 980/1000 μm |
Multimode 62,5 (50)/125 μm |
Singlemode 9/125 μm |
||||||
| Optical budget | 12 dB | 13 dB | 17 dB | ||||||
| Operating distance | 50 m (180 dB/km) |
5 km (1 dB/km) |
30 km (0,4 dB/km) |
||||||
| Wavelength | 650 nm | 1300 nm | 1300 nm 1550 nm |
1310 nm | 1310 nm 1550 nm |
||||
| Termination | Switchable | ||||||||
| RS485 Data cable Length | 1200 m (9,6-187,5 KBit/s), 400 m (500 KBit/s), 200 m (1,5 MBit/s) | ||||||||
| RS485 Connector | 9-pin female Sub-D and 6-pin connection terminal | ||||||||
| Control - LEDs | Power supply (green) / Data receive (yellow) / Status/Fail (red) + Fiberview (red, yellow, green) | ||||||||
| Power supply | 12-30 VDC, other voltages on request | ||||||||
| Power consumption | 5 Watt, 200 mA (24 V) | ||||||||
| Potential separation | 500 VDC (24 VDC <> RS485) | ||||||||
| Operating temperature | –40 °C – +70 °C (Multimode and Singlemode with ST or SC), –20 °C – +55 °C (all others) | ||||||||
| EMC | DIN EN 55032:2016-02 - Class A / DIN EN 61000-6-2:2005 | ||||||||
| Weight | 500 g | ||||||||
| Dimensions | 60 x 120 x 110 mm | ||||||||
| Housing | Stainless steel, powder coated | ||||||||
